FM 200 Clean Agent System

Global Fire Industries

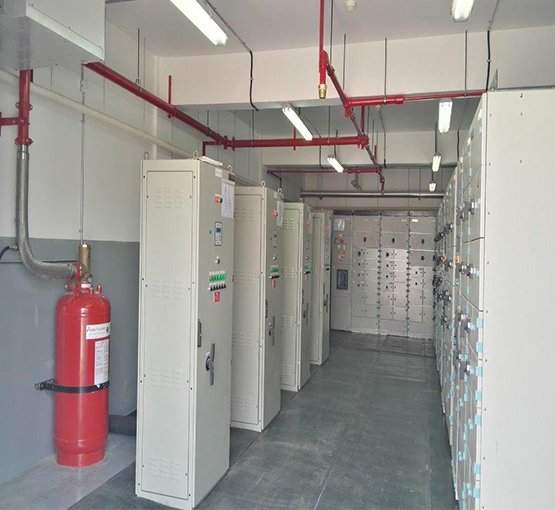

UL Approved Clean agent chemical - FM200

Clean agent chemical gaseous fire protection systems reach extinguishing levels in seconds Chemical systems work by breaking down the combustion process via heat absorption and chemical interaction, stopping ordinary combustible, electrical and flammable liquid fires before they cause significant damage.

In addition they are non-conductive, non-corrosive,safe for equipment, and most importantly, safe for people.All systems are designed and Configured to meet both customer specifications and design, installation and maintenance standards.

With UL listings and manufacture in an AS9100C/ISO 9001:2008 -Certi fied facility this 25 bar system is available in fill volumes ranging from m 4 -590kg and can be activated wither manually or automatically using me-chanical, pneumatic or electrical activation.

FSL CG4 Engineered System With 3MTM NovecTM 1230

Clean agent chemical gaseous fire protection systems reach extinguishing levels in seconds. Novec 1230 fluid is stored as a liquid and discharged as a gas. It distributes uniformly throughout the hazard zone, and suppresses fire primarily by heat ab-sorption from the flame.

The FSL CG4 UL listed system is engineered to optimize the unique flow -acteristics of Novec 1230. Due to lower volatility. Novec can be safely charged to 35bar (500 psi). The increased pressure, combined with the liquid flow character-istics of Novec in the discharge piping, has enabled significant improvemar4s in design flexibility over traditional 25 bar (360psi) systems :

Greater pipe volume to liquid agent volume, enabling larger than average distribution networks Increased distance from the cylinder to the nozzle Increased vertical differential from the cylinder to the nozzle Cylinder sizes range from 15 litre through to 490 litre 4 sizes of cylinder valve, includes the market leading 4' (100mm)
