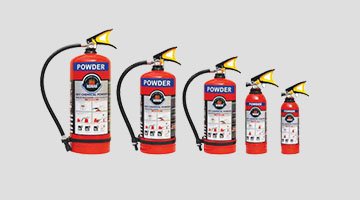

Material :
DC-BC
Size : 4KG, 6KG,9KG,25KG,50KG & 75KG
IS 15683: 2006 Propellent Nitrogen Gas.
Service Pressure (Ps) : 15 bar.
Pressure tested: 35 bar
Material :
Store Type Dry Chemical Fire Extinguishers
Size : 4KG, 6KG,9KG,25KG,50KG & 75KG
IS 15683: 2006 Propellent Nitrogen Gas.
Service Pressure (Ps) : 15 bar.
Pressure tested: 35 bar

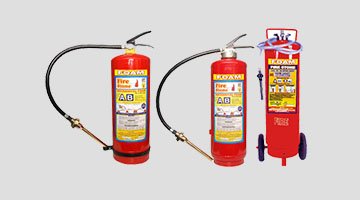

Material :

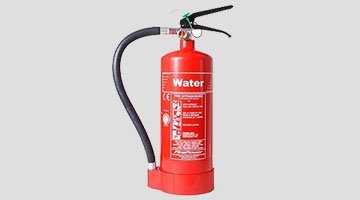

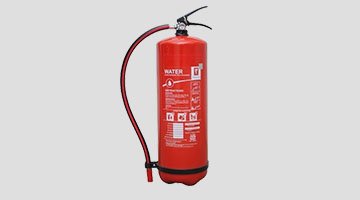

A Water Type
Size : 6KG, 9KG,50KG
The Water Type Fire Extinguishersprovided by us are known for their sturdy designs and ease of use. These are used to prevent fire related hazards and mishaps.
IS 15683: 2006 CO2 Gas Cartridges 120 grms,
Service Pressure (Ps) : 15 bar.
Pressure tested: 35 bar
Material :
Store Type A Water Type
Size : 6KG, 9KG,50KG
IS 15683: 2006 Propellent Nitrogen Gas.
Service Pressure (Ps) : 15 bar.
Pressure tested: 35 bar

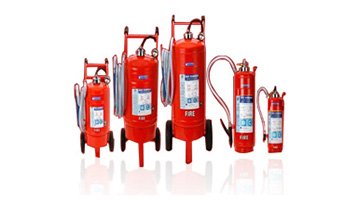

Performance Data Fire extinguisher capacity : 50 ltr Minimum period for which throw of jet maintained : 60 sec Minimum period for discharge at least 90% of contests : 180 sec Range of Jet : 10 mtrs Empty Wt (Approx) : 35 kg Full Wt(Approx) : 80 kg Working pressure : 15 bar Hydro pressure : 35 bar Brusting pressure : 45 bar
Performance : Data Model : 9 Capacity : 9L Fire Rating : 4A: 34B Average discharge time : 50 sec Height (Approx) : 575mm Diameter (Approx): 180 +10mm Filled weight (Approx) : 12.5 kg Empty weight (Approx) : 3.8 kg Operating temperature : +5oC to + 55oC Working pressure at 20oC : 15 bar Maximum service pressure : 17 bar Test pressure : 35 bar Approval : BIS

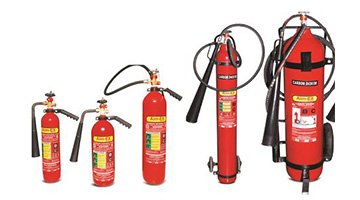

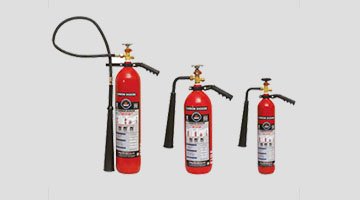

Model : 2 3 4.5 Capacity : 2kg 3kg 4.5kg Fire Rating : 8B 13B 21B Average Discharge time : 12 Sec 14 Sec 14 Sec Height (Approx) : 425 mm 470 mm 610 mm Diameter (Approx) : 180(+/-) 10mm 140(+/-) 10mm 140(+/-) 10mm Filled Weight(Approx) : 8.9 Kg or 8.2 kg 12.5 kg or 11.8 Kg 17 Kg or 16.3 Kg Empty Weight(Approx) : 6.9 Kg or 6.2 kg 9.5 kg or 8.8 Kg 12.5 kg or 11.8 Kg Operating temperature : (-30) to (+55) Degree celcius (-30) to (+55) Degree celcius (-30) to (+55) Degree celcius Working pressure at 20 Degree Celcius : 150 bar 150 bar 150 bar Maximum test pressure : 250 bar 250 bar 250 bar Approval : BIS BIS BIS

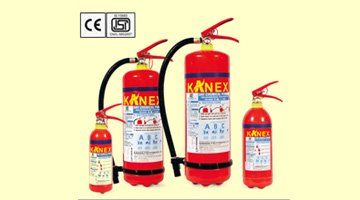

Performance Data Model : 1 2 4 6 9 Capacity: 1 kg, 2kg, 4kg, 6kg , 9 kg Fire Rating : 1A:8B 1A:13B 2A:21B 2A:34B 3A:55B Average Discharge time : 9 Sec 14 Sec 18 Sec 21 Sec 23 Sec Jet Range : 2 mtr 2 mtr 4 mtr 4 mtr 8 mtr Height without Base : 325 mm 390 mm 500 mm 530 mm 600 mm Diameter (Approx) : 86(+/-) 10mm 108 mm 140 mm 150 mm 180 mm Filled Weight(Approx) : 2 kg 3.4 Kg 6.7 Kg 9 Kg 13.18 Kg Empty Weight(Approx) : 1 Kg 1.4 kg 2.7 Kg 3 Kg 4.18 Kg Operating temperature : (-30) to (+55) Degree celcius (-30) to (+55) Degree celcius (-30) to (+55) Degree celcius Working pressure at 20 Degree Celcius : 15 bar 15 bar 15 bar 15 bar 15 bar Maximum Service Pressure : 17 bar 17 bar 17 bar 17 bar 17 bar Test Pressure : 35 bar 35 bar 35 bar 35 bar 35 bar Approval : BIS BIS BIS BIS BIS
