Hydrant System

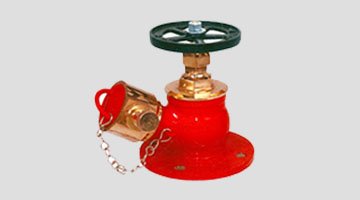

Single Hydrant Valve GM

Brands : Essel,Winco,AAAG Material : Gunmetal Size : 63mm Performance : As Per IS 5290 Hydrant Valve Type A, ISI marked (IS:5290), made of Gun Metal, having 75 mm flanged inlet, and 63 mm Female Instantaneous outlet, provided with C.I. handwheel for operation, and PVC blank cap with chain. Body duly painted with 2 coats of superior quality paint. H.P. tested to 21 kgf/cm2 (body) and 14 kgf/cm2 (seat). Flow 900 lpm (min) at 7 kgf/cm2.

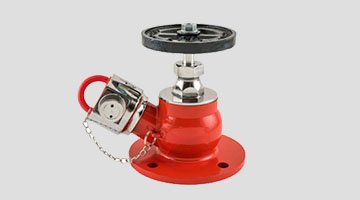

Single Hydrant Valve SS

Brands : Essel,Winco,AAAG Material : Stainless Steel Size : 63mm Performance : As Per IS 5290 Hydrant Valve, as per IS:5290 Type A, made of Stainless Steel (SS304/SS316), having 75 mm flanged inlet, and 63 mm Female Instantaneous outlet, provided with C.I. handwheel for operation, and PVC blank cap with chain. Body duly painted with 2 coats of superior quality paint. H.P. tested to 21 kgf/cm2 (body) and 14 kgf/cm2 (seat). Flow 900 lpm (min) at 7 kgf/cm2.

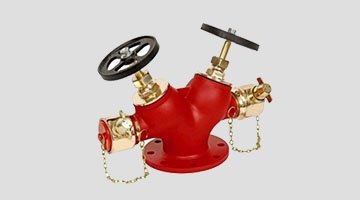

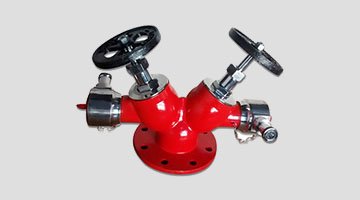

Double Hydrant Valve Gunmetal

Brands : Essel,Winco,AAAG Material : Gunmetal Size : 63mm Performance : As Per IS 5290 Hydrant Valve (Double headed)-Type B, made of Gun Metal, having 100 mm flanged inlet, and 2 Nos. 63 mm Female Instantenous outlets, having C.I. handwheels for operation, and PVC blank caps with chain. Body duly painted with 2 coats of superior quality paint. H.P. tested to 21 kgf/cm2 (body) and 14 kgf/cm2 (seat). Flow 1800 lpm (min) at 7 kgf/cm2.

Double Hydrant Valve SS

Brands : Essel,Winco,AAAG Material : Stainless Steel Size : 63mm Performance : As Per IS 5290 Hydrant Valve (Double headed), as per IS: 5290, made of Stainless Steel, having 100 mm flanged inlet, and 2 Nos. 63 mm Female Instantenous outlets, C.I. handwheels for hydrant operation, and PVC blank caps with chain. Body duly painted with 2 coats of superior quality paint. H.P. tested to 21 kgf/cm2 (body) and 14 kgf/cm2 (seat). Flow 1800 lpm (min) at 7 kgf/cm2

Branch Pipe GM

Brands : Essel,Winco,AAAG Material : Gunmetal Size : 63mm Performance : As Per IS 903 Short Branch Pipe with Nozzle, ISI marked, conforming to IS: 903, made of Gun Metal (Lead Tin Bronze), fitted with 6/ 12/ 16/ 20/ 25 mm bore nozzle, for projecting water in form of solid jet. The Branch shall have 63mm Male Instantaneous Inlet, suitable for use with 63 mm size Fire fighting hoses. H.P. tested to 21 kgf/cm2 for 2.5 minutes.

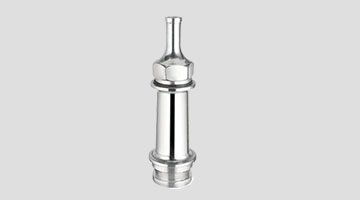

Branch Pipe SS

Brands : Essel,Winco,AAAG Material : Stainless Steel Size : 63mm Performance : As Per IS 5290 Short Branch Pipe with Nozzle, as per IS: 903, made of Stainless Steel (SS304/SS316), fitted with 6/ 12/ 16/ 20/ 25 mm bore nozzle, for projecting water in form of solid jet. The Branch shall have 63mm Male Instantaneous Inlet, suitable for use with 63 mm size Fire fighting hoses.

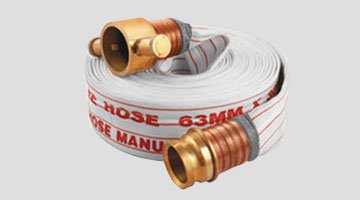

C.P Hose

Brands : Essel,CRC Material : Cotton Synthetic Fibre Size : 15mtrs,18.3mtrs,22.5mtrs,30mtrs or any other lengths preferably below 30mtrs. Cotton Synthetic Fibre, Circularly Woven Jacketed,Treated against rot with Mystox,Abrasion Resistantv Ultra Thin Lining,Light, Flexible, Compact, Flat Folding,High Kink Resistance,Burst Pressure 36kg/cm2 (530 PSI),Proof Pressure 22kg/cm2 (320 PSI),Working Pressure 18 Kg/cm2 (260 PSI),IS 8423/1994,Bearing ISI mark,Flame Resistance,TAC approved.

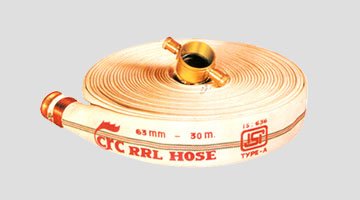

RRL Hose

Brands : Essel,CRC Material : Rubberised Fabric Reinforced Rubberlined Size : 15mtrs,18.3mtrs,22.5mtrs,30mtrs or any other lengths preferably below 30mtrs.

Cotton Synthetic Fibre Construction, Circularly Woven Jacketed,Rubberised Fabric Reinforced Rubberlined (RRL),Treated against rot with Mystox,High Abrasion Resistant,Flexible,Compact,Flat Folding ,Burst Pressure 36kg/cm2 (530 PSI),Proof Pressure 22kg/cm2 (320 PSI),Working Pressure 18 Kg/cm2 (260 PSI),IS 636/1988 Type A,BS 6391 Type - 1,Bearing ISI mark,Abrasion Resistance 200 Cycle,Heat Resistance 12 sec,TAC approved.

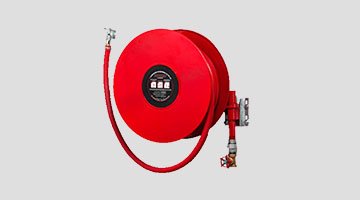

Hose Reel Drum Complete Set Hydrant Valve GM

Brands : Ronak,AAAG Material : Thermoplastic Size : 30m X 19mm Standard various sizes available upon request

Side plates red epoxy powder finishing, Automatic hose reel has integrated automatic stop valve which will open after 2 revolution of the reel,Threaded Inlet connection,Outlet connection for hose can be rotated for left and right direction,Waterways made from non ferrous metals which ensure corrosion free*,Maximum working pressure 12bar, test pressure 18bar,Maximum working pressure 10bar, test pressure 17bar,Side plates available in stainless steel.

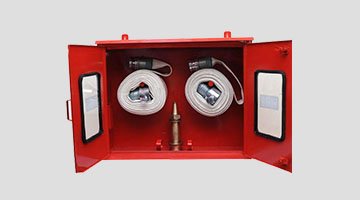

Hose Box

Material : Mild Steel Size : Single door: 450MM X 450MM X 200MM , Double door: 750MM X 600MM X 250MM Superior grade MS material with rubber glass fitting. Available in different sizes. Painting color red.Require low maintenance.

Fire Shaft Door

Our firm is sincerely engaged in manufacturing a large variety of Fire Shaft Door for our valuable clients. These products are manufactures utilizing supreme grade components and advance grad machineries that we source from our trusted and credible suppliers of the industry. Keeping the value of the quality, the developed products are supplied within the defined time. Moreover these items are available at cost effective prices.
Features :
High tensile strength
Corrosion resistant
Light weight

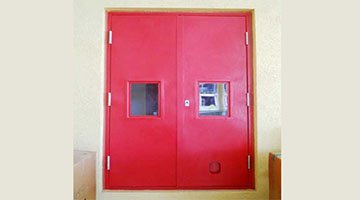

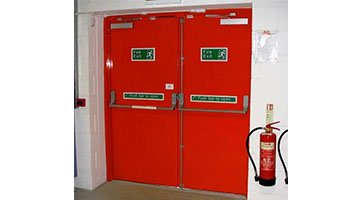

Fire Door

The range of our Fire Doors is widely used in the following areas:
Commercial Complexes
Hospitals
Food and Pharma Based Industries
IT Industries
Cinema Halls
Garment Units
Restaurants
Software Technology Parks
